Flexit JW1K AND JW2K hoses are designed and manufactured for use as jet wash hoses with hot or cold water under pressure.

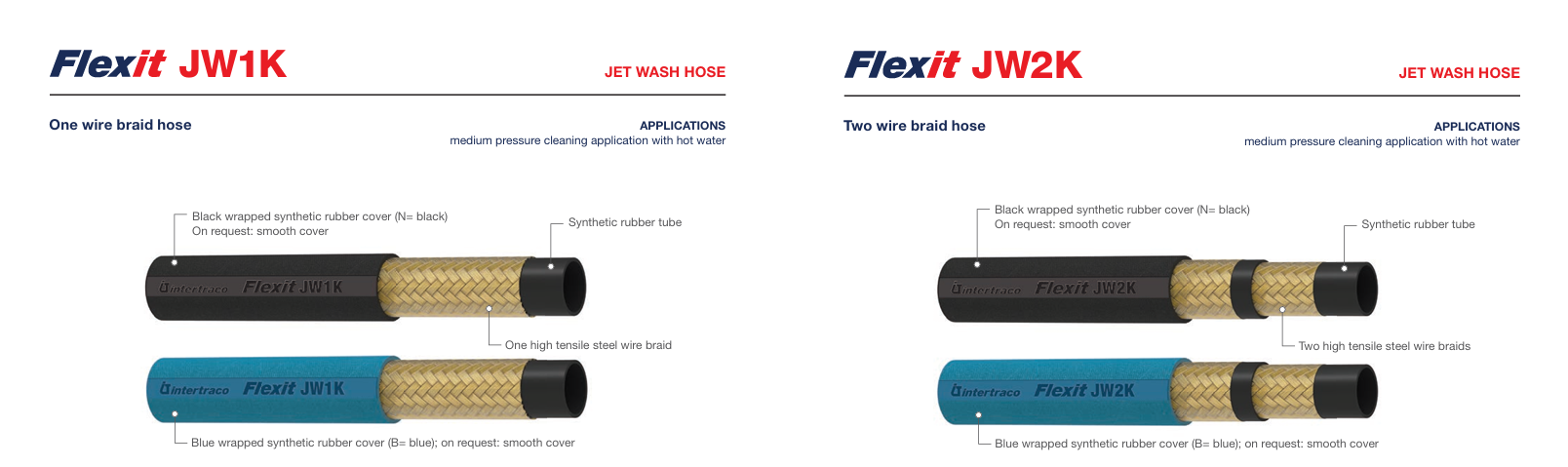

The hoses are manufactured with either a black or blue wrapped synthetic rubber cover. N in the part number refers to the black cover and B to the blue cover. The working pressures do not alter.
The liner is a synthetic rubber tube.
JW1K hoses are reinforced with a single high tensile steel wire braid. JW2K hoses are reinforced with two high tensile steel wire braids.
Both hose types have a working temperature range, in degrees Celsius, from minus 40 to plus 150.
| FLEXIT JW1K | |||
|---|---|---|---|
| Part No | Bore size ins | Working pressure | Burst pressure bar |
| JW1KN-04 | 1/4 | 250 | 1000 |
| JW1KN-05 | 5/16 | 250 | 1000 |
| JW1KN-06 | 3/8 | 250 | 1000 |
| JW1KN-08 | 1/2 | 250 | 1000 |
| JW1KB-04 | 1/4 | 250 | 1000 |
| JW1KB-05 | 5/16 | 250 | 1000 |
| JW1KB-06 | 3/8 | 250 | 1000 |
| JW1KB-08 | 1/2 | 250 | 1000 |
| FLEXIT JW2K | |||
|---|---|---|---|
| Part No | Bore size ins | Working pressure | Burst pressure bar |
| JW2KN-04 | 1/4 | 400 | 1600 |
| JW2KN-05 | 5/16 | 400 | 1600 |
| JW2KN-06 | 3/8 | 400 | 1600 |
| JW2KN-08 | 1/2 | 400 | 1600 |
| JW2KB-04 | 1/4 | 400 | 1600 |
| JW2KB-05 | 5/16 | 400 | 1600 |
| JW2KB-06 | 3/8 | 400 | 1600 |
| JW2KB-08 | 1/2 | 400 | 1600 |
The hoses can be used with Intertraco one piece hose fittings types K without the need to skive the hose. They can also be used with Intertraco two piece hose fittings type B, again with no skiving required.
Download the full hose catalogue here, with all the details.
