[vc_row][vc_column][vc_single_image image=”8914″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]Flexit HT1 and HT2 hoses are designed and manufactured for the transfer of high temperature liquids, namely mineral and biological hydraulic oils, polyglycol based oils, water/oil emulsions and water.

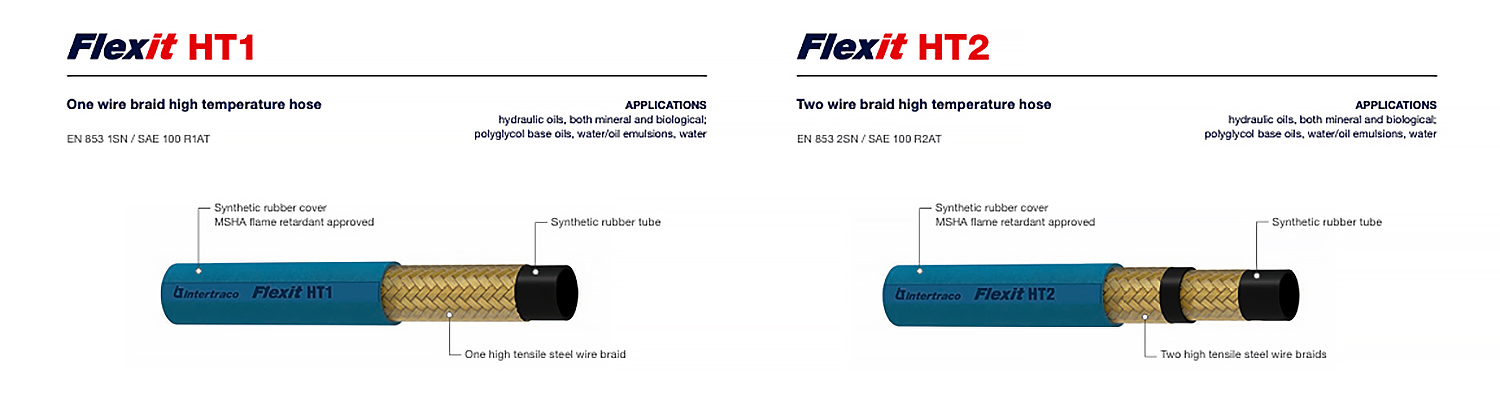

The hoses are manufactured with a blue synthetic rubber cover which is MSHA approved to be flame retardant. The liner is a synthetic rubber tube.
HT1 hoses are reinforced with a single high tensile steel wire braid. HT2 hoses are reinforced with two high tensile steel wire braids.
Both hose types have a working temperature range, in degrees Celsius, from minus 40 to plus 135 with occasional peaks up to plus 150.
| FLEXIT HT1 | |||
|---|---|---|---|
| Part No | Bore size ins | Working pressure | Burst pressure bar |
| HT1-04 | 1/4 | 225 | 900 |
| HT1-05 | 5/16 | 215 | 860 |
| HT1-06 | 3/8 | 180 | 720 |
| HT1-08 | 1/2 | 160 | 640 |
| HT1-10 | 5/8 | 130 | 520 |
| HT1-12 | 3/4 | 105 | 420 |
| HT1-16 | 1 | 88 | 352 |
| HT1-20 | 1-1/4 | 63 | 252 |
| HT1-24 | 1-1/2 | 50 | 200 |
| HT1-32 | 2 | 40 | 160 |
| FLEXIT HT1 | |||
|---|---|---|---|
| Part No | Bore size ins | Working pressure | Burst pressure bar |
| HT2-04 | 1/4 | 400 | 1600 |
| HT2-05 | 5/16 | 350 | 1400 |
| HT2-06 | 3/8 | 330 | 1320 |
| HT2-08 | 1/2 | 275 | 1100 |
| HT2-10 | 5/8 | 250 | 1000 |
| HT2-12 | 3/4 | 215 | 860 |
| HT2-16 | 1 | 165 | 660 |
| HT2-20 | 1-1/4 | 125 | 500 |
| HT2-24 | 1-1/2 | 90 | 360 |
| HT2-32 | 2 | 80 | 320 |
The hoses can be used with Intertraco one piece hose fittings types K or J without the need to skive the hose. They can also be used with Intertraco two piece hose fittings type B with external skiving required.
Download the full hose catalogue here, with all the details.[/vc_column_text][/vc_column][/vc_row]
