Flexit R5 is a versatile hose designed and manufactured for the transfer of mineral and biological hydraulic oils, lubricating oils, water/oil emulsions, and water under medium pressures.

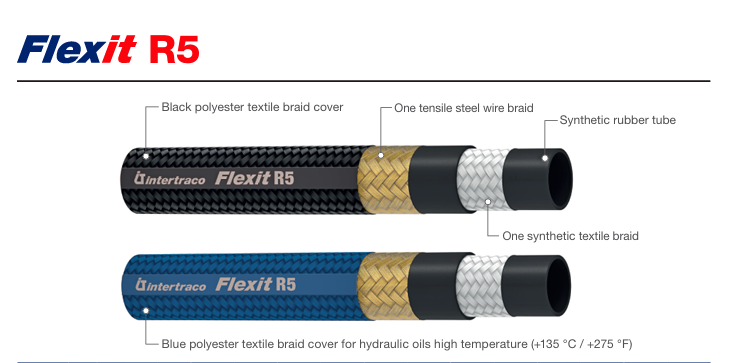

These hoses are constructed using a synthetic rubber tube as the liner, reinforced with one synthetic textile braid and an outer one tensile steel wire braid. Two versions of this hose are available with different outer covers for different applications.
- The black polyester textile braided cover for hydraulic oils working at up to 100C.
- A blue polyester textile braided cover for hydraulic oils at high temperatures, working at up to 135C.
| FLEXIT SAE 100 R5 | |||
|---|---|---|---|
| Part No | Bore size ins | Working pressure | Burst pressure bar |
| R5-04 | 1/4 | 210 | 840 |
| R5-05 | 5/16 | 210 | 840 |
| R5-06 | 3/8 | 155 | 620 |
| R5-08 | 1/2 | 140 | 560 |
| R5-10 | 5/8 | 122 | 488 |
| R5-12 | 3/4 | 105 | 420 |
| R5-16 | 1 | 56 | 224 |
| R5-20 | 1-1/4 | 43 | 172 |
| R5-24 | 1-1/2 | 35 | 140 |
| R5-32 | 2 | 24 | 96 |
